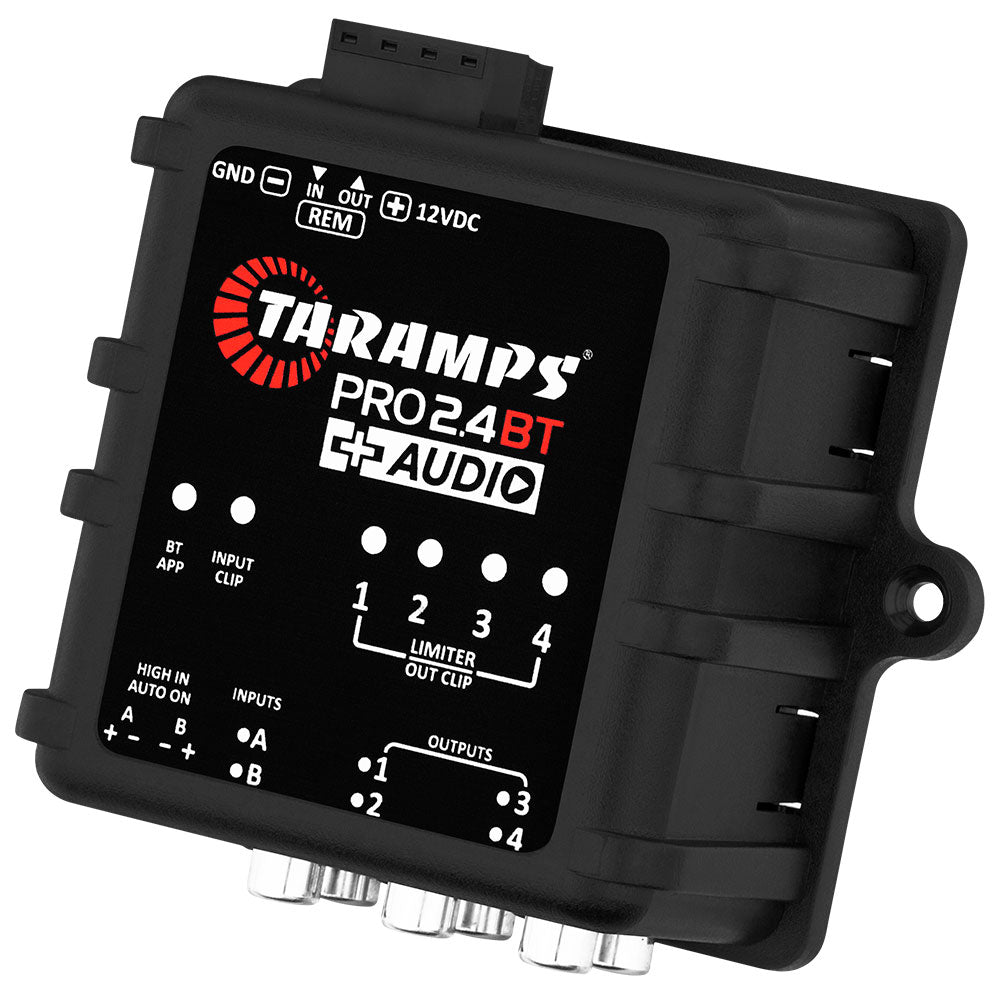

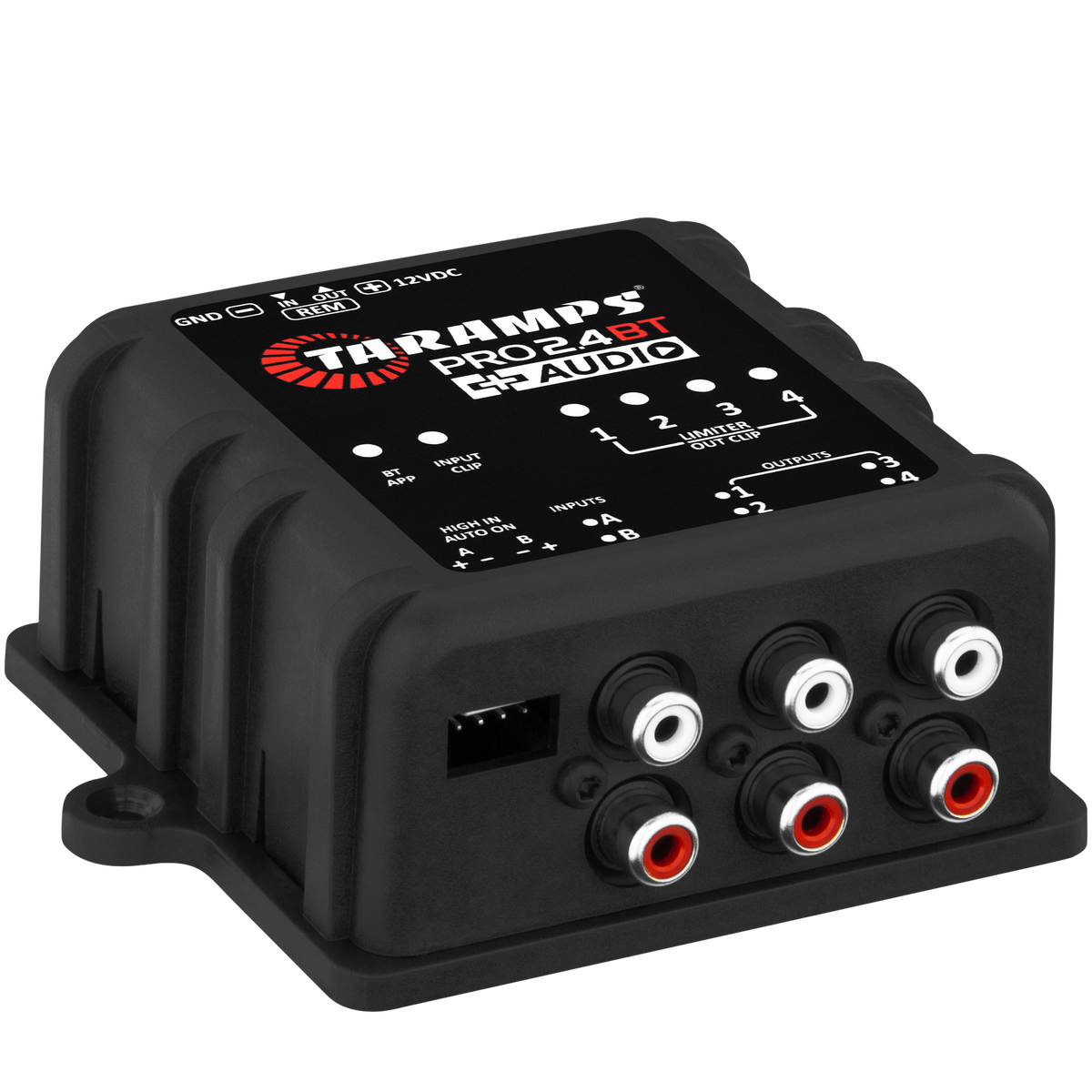

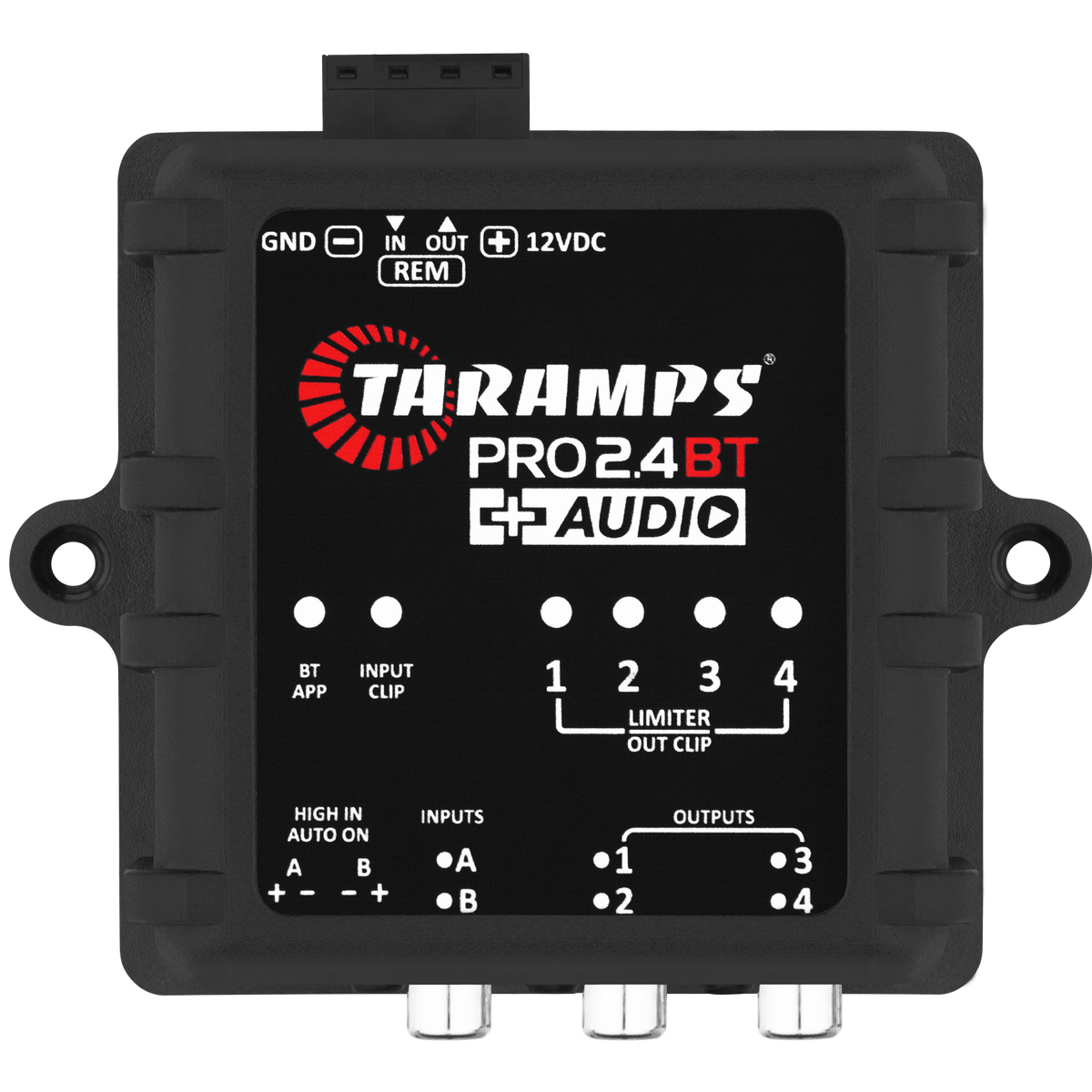

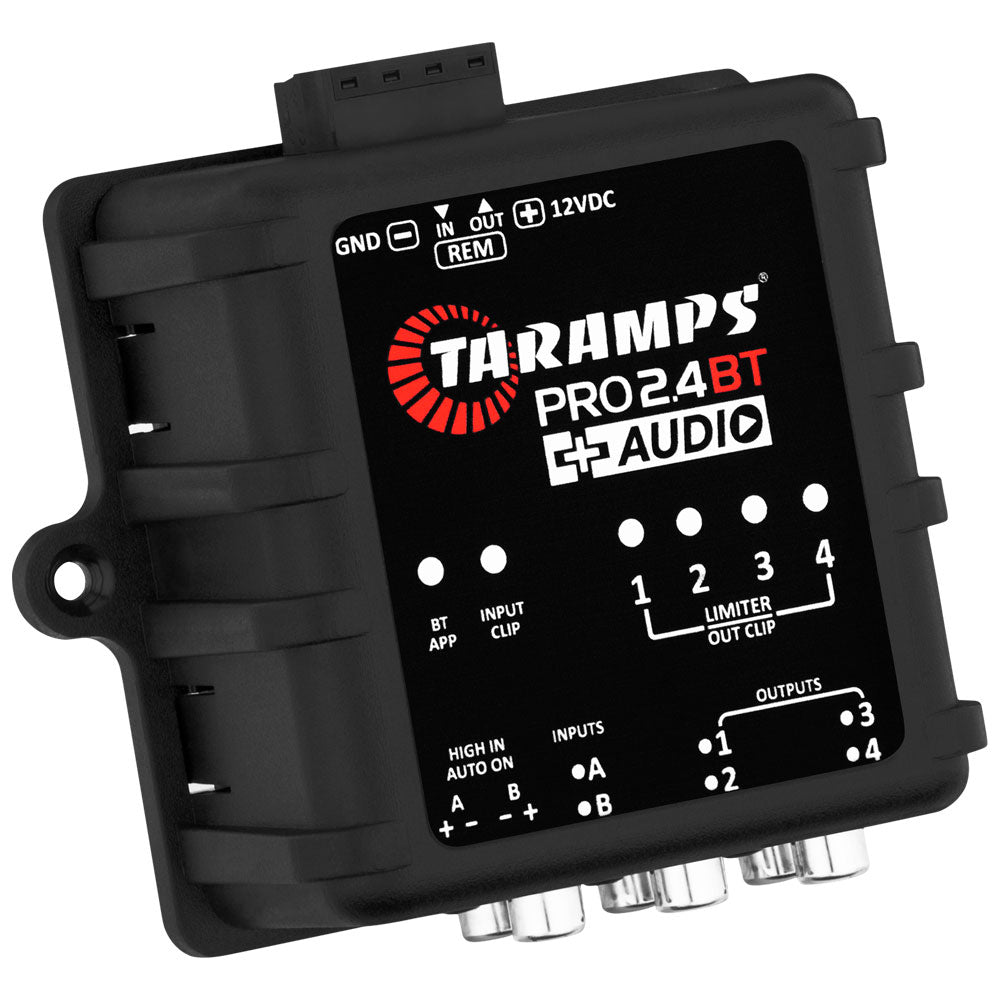

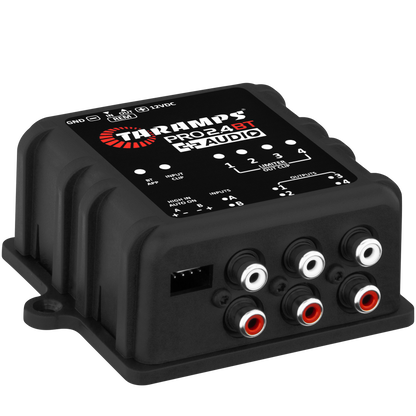

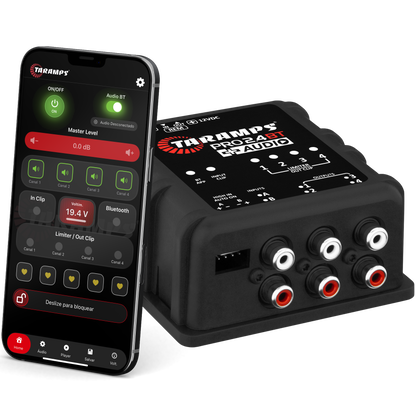

Taramps PRO 2.4BT + AUDIO PROCESSOR WITH BLUETOOTH
Taramps PRO 2.4BT + AUDIO PROCESSOR WITH BLUETOOTH
Couldn't load pickup availability
AUDIO PROCESSOR WITH BLUETOOTH FOR MUSIC STREAMING, SMARTPHONE CONTROL, AND A COMPACT DESIGN.

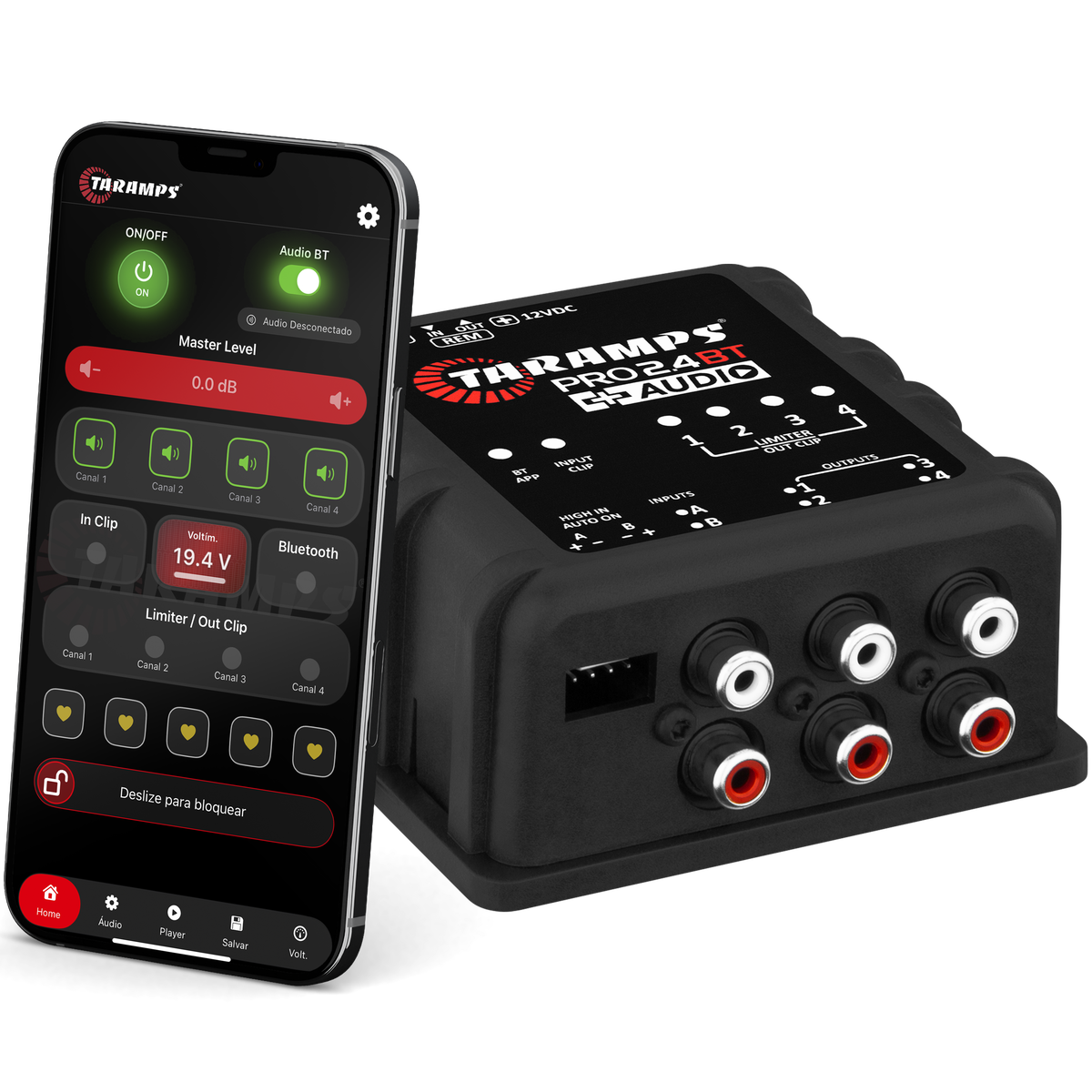

The PRO 2.4BT + Audio is a 4-channel digital audio processor designed to provide complete control and convenience for car audio systems. With built-in Bluetooth, it allows music playback directly from your smartphone and full system tuning via an app available for Android and iOS.
The unit features dual Bluetooth connectivity: one for app control and adjustments and another dedicated to audio streaming, ensuring a modern and seamless user experience.
Extremely compact, the PRO 2.4BT + Audio fits in the palm of your hand, making it ideal for discreet and organized installations, even in limited spaces. (Ideal For Motorcycles, ATV's, Golf Carts, or your car)
Recommended for:
- Speaker enclosures / mobile sound systems
- Compact builds
- Space-limited installations
- Car audio systems
- Discreet installations
- Systems aiming to eliminate the head unit
- In-car audio systems
- Large-scale systems, and more
Product Features
- 4-channel digital audio processor
- Bluetooth audio streaming
- Bluetooth control and tuning via app
- RCA and high-level inputs
- Crossover with filters up to -48dB
- Precise equalization
- Built-in limiter
- Anti-pop output system
- Integrated voltmeter with maximum and minimum voltage display
- Customized app shortcuts
| Connectivity | 5.4 BLE (Low-Energy) APP Bluetooth Classic (A2DP - AUDIO) |
|---|---|
| Input impedance | (RCA): 10K ohms (High-Level Input): 50 ohms |
| Output impedance | 47 ohms |
| Maximum input level | (RCA): 5.9Vpp (2.1V RMS) (High-Level Input): 28Vpp (10V RMS) |
| Maximum output level | 5.9Vpp (2.1V RMS) |
| Frequency response | (-1dB): 10Hz to 22KHz |
| Total Harmonic Distortion | 0.01% |
| Signal to Noise Ratio | >90dB |
| Crosstalk (separation between channels) | >80dB |
| Minimum Supply Voltage | 9 VDC |
| Maximum Supply Voltage | 16 VDC |
| Stand-by consumption | 20mA |
| Input Channels | 2 |
| output channels | 4 |
| Routing | A, B, A+B |
| General gain | -80 to 0dB |
| Output gain | -45 to +15dB |
| crossover | HPF and LPF |
| cutoff frequency | Variable 10Hz to 22KHz |
| Linkwitz Rilley Filters | -12, -18, -24, -30, -36, -42, -48dB/Octave |
| Butterworth filters | -12, -18, -24, -30, -36, -42, -48dB/Octave |
| Alignment | (Delay): 8.0mS (272cm) |
| Phase | 0 / 180° |
| Adjustable Limiter | Auto |
| Threshold | -48 to 0dB |
| attack | 0.1mS to 100mS |
| Release | 1mS to 1600mS |
| Individual MUTE function on outputs | Yes |
| Languages | English / Portuguese / Spanish |
| Memory Positions | Factory default + 3 customizable positions |
| Dimensions (W x H x D) | 4.33" x 1.65" x 3.86" (110 x 42 x 98mm) |
| Weight | 0.24lb (0.11Kg) |
| EAN | 79087066039 |
PRO 2.4BT + Audio
Your smartphone in control of your sound.
